City Permit Site Plan Requirements: What You Need in Every State

When applying for a building permit in the U.S., your site plan can make or break your approval. Whether you’re installing a pool in Florida, building an ADU in California, or adding a garage in Texas, almost every jurisdiction requires a permit-ready site plan to verify compliance with zoning laws, safety codes, and building regulations.

The challenge? Requirements differ across states — and even between cities within the same state. Missing a single detail could mean rejection, delays, or extra fees.

City Permit Site Plan Requirements: What You Need in Every State

This guide breaks down:

What every site plan must include
Specific requirements in 20 major U.S. states
Tips to avoid rejections
Where to get a site plan without a surveyor
FAQs to answer common concerns

What Is a Site Plan for a Permit?

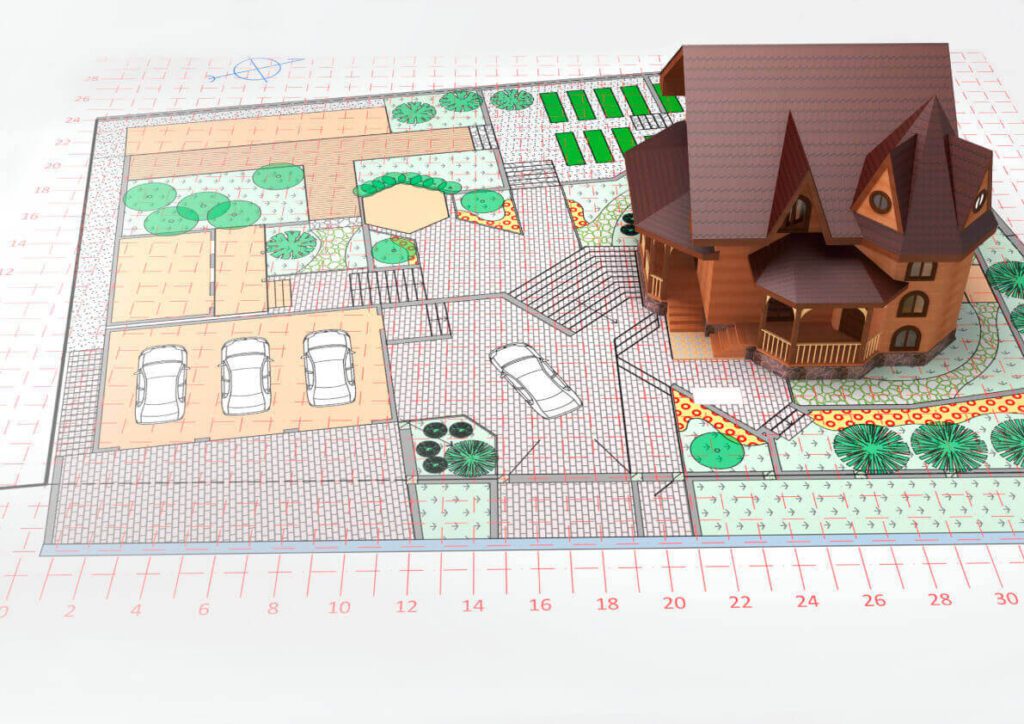

A site plan is a scaled drawing that shows your property’s boundaries, structures, and features in detail. It helps permitting officials confirm your project’s compliance with zoning setbacks, utility easements, safety standards, and land use regulations.

Common elements include:

Property boundaries with accurate measurements
Location of existing and proposed structures
Setbacks from property lines
Driveways, parking areas, and walkways
Easements, utilities, and drainage details
North arrow, scale, and legend

If your project is small, you may be able to use existing public data; for more complex builds, you might need stamped drawings from a surveyor or engineer.

Core Elements Every Jurisdiction Typically Requires

Across the U.S., most site plans must include:

Accurate Scale (e.g., 1” = 20’)
North Arrow & Legend
Property Lines & Dimensions
Footprint of All Structures
Setback Measurements
Driveways, Parking, & Access Points
Easements & Utility Lines
Topography or Grading (if needed)
Drainage & Stormwater Notes
Vegetation or Landscaping Features

State-by-State Requirements Overview

Below are highlights from 20 major states. Always verify with your local zoning or permitting office for precise rules.

1. California

Requires CEQA review for certain projects.
Must show fire access routes, landscaping, and drainage.
ADUs need detailed utility connections.

2. Texas

Easements must be shown for utilities and drainage.
Floodplain data required in some counties.
Small projects may allow hand-drawn “not to scale” plans.

3. Florida

FEMA flood elevation data mandatory in flood zones.
Show hurricane zone compliance (wind load design).
Pool projects require safety barrier notes.

4. New York

In historic districts, additional architectural review is required.
Some boroughs require licensed architect stamps.
Must show access for emergency services.

5. Illinois

Drainage and grading plans often required.
Many suburbs have standard PDF site plan templates.

6. Georgia

Tree preservation and landscaping notes often mandatory.
Setback distances vary by county zoning codes.

7. Arizona

Water conservation features may be required.
Show distances to washes or desert easements.

8. Colorado

Grading, snow storage, and stormwater runoff notes needed.
Mountain towns may require slope stability information.

9. Washington

Critical area reports for wetlands or shorelines.
Stormwater detention systems must be marked.

10. Oregon

Energy efficiency compliance (especially for new homes).
Zoning overlays can change setback rules.

11. Pennsylvania

Soil erosion and sediment control plans may be needed.
Utilities must be accurately plotted.

12. North Carolina

Septic system locations must be included.
Driveway permits may be tied to site plan approval.

13. Michigan

Show proximity to lakes, rivers, or wetlands.
Local fire marshal review for commercial projects.

14. Ohio

Easements and right-of-way notes are mandatory.
Must match county GIS parcel lines.

15. New Jersey

Environmental review if in coastal or wetland zones.
Impervious surface coverage calculations required.

16. Massachusetts

Historic district approvals often needed.
Stormwater management compliance required.

17. Virginia

Chesapeake Bay Preservation Act zones may impact layout.
Show erosion control measures.

18. Nevada

Dust control plans for construction sites over certain size.
Desert landscaping requirements for some developments.

19. Minnesota

Show snow storage areas for winter compliance.
Shoreland management regulations near lakes/rivers.

20. Alaska

Include permafrost considerations in foundation placement.
Show utility access in remote areas.

Tips to Avoid Site Plan Rejection

Download the local checklist from your city/county website.
Use the correct scale and legend format.
Include all easements and utilities, even if underground.
Double-check setback distances against zoning codes.
Submit in the correct format (PDF, printed copies, etc.).

Getting a Site Plan Without a Surveyor

If your jurisdiction doesn’t require a licensed surveyor’s stamp, you can save time and money by using:

County GIS and public parcel maps.
Existing property closing documents.
Professional online services like Pro Site Plans — which deliver permit-ready site plans within 24 hours using existing data, drawn to scale, and meeting city requirements nationwide.

FAQs

Q: Do I always need a stamped survey for a site plan?
A: No. Many cities allow non-survey site plans for smaller projects if drawn to scale and accurate.

Q: What’s the difference between a site plan and a plot plan?
A: Often interchangeable, but some jurisdictions use “plot plan” for simpler layouts without engineering notes.

Q: Can I draw my own site plan?
A: Yes, if your city permits it and you meet accuracy, scale, and content requirements.

Q: How long does it take to get a site plan?
A: With online providers like Pro Site Plans, you can get one in 24 hours or less for most projects.

Q: Will my site plan work for HOA approval too?
A: Usually yes, but check your HOA’s additional requirements before submission.

Final Thoughts

Understanding site plan requirements for your state is key to a smooth permitting process. With the right information and a permit-ready plan, you can avoid costly delays and get your project approved faster.

Get your permit-ready site plan today in 24 hours: Order Online Now

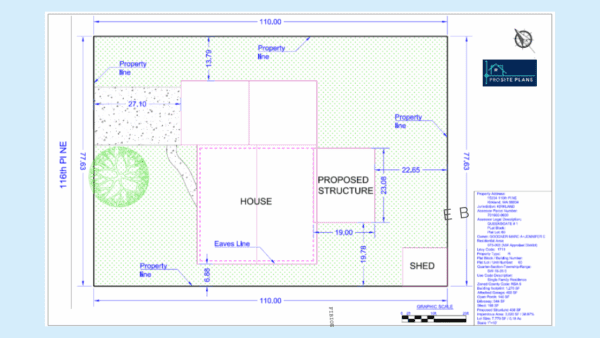

➔ How to Get a Site Plan for Your City Permit Without Hiring a Surveyor
